灯杆及6米以下监控杆

杆件类产品：
包括监控杆、八棱杆、标志杆、龙门架、限高杆、智慧杆、太阳能灯杆，高灯杆、景区杆、河道杆、山顶杆等支持加工定制，广泛应用于城市管理、交通、能源、景观、特殊环境等多个领域。
产品特点与优势：
一、高灯杆和普通灯杆：

高杆灯和普通灯杆（通常指6–15米的中低杆路灯）因结构、高度和功能差异，在照明效果、适用场景及维护成本等方面各有优势。以下是两者的核心优势对比：

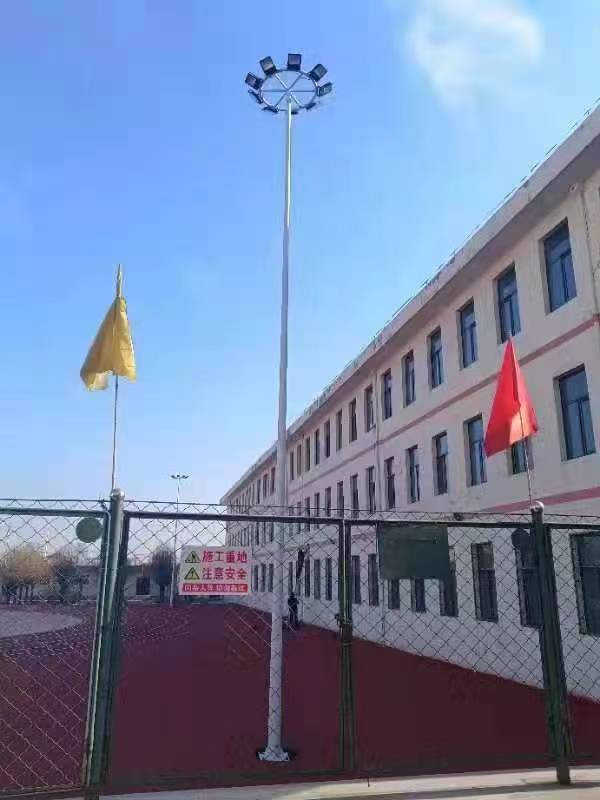

一、高杆灯的核心优势（高度通常≥15米，可达40米）

1.1超大范围照明

覆盖面积广：单灯照明半径可达60米，灯盘可集成多组大功率光源（如8–36头LED或高压钠灯），适合机场✈️、港口⚓️、体育场等万平米级区域。

均匀无死角：通过透镜和反射器优化配光，减少阴影和眩光，实现类似白天的照明效果。

1.2高效维护与安全性

智能升降系统：内置电动升降装置（380V动力驱动），灯盘可降至地面检修，无需吊车或高空作业，降低风险与成本。

1.3抗极端环境

灯杆采用热浸锌+喷塑工艺（镀锌层≥86μm），抗风达11级（36m/s）、抗震8级，寿命超30年。

1.4场景适配性强

支持定制灯盘结构（圆形/多边形）和光源组合，灵活匹配广场、立交桥等不同场景。

高安装位置（20米以上）避免遮挡交通，减少撞杆事故。

1.5节能与智能化

LED光源能耗比传统灯具低50%，配合分时段调光，年省电费60%+。

可集成智能控制模块，实现远程监控和能效管理。

二、普通灯杆的核心优势（高度通常≤12米）

2.经济性与普及性

2.1成本低廉：初始投资仅为高杆灯的1/5–1/10，安装简单，无需复杂基础建设。

2.2适用性广：覆盖城市道路、小区、公园等中小型场景，满足基础照明需求。

2.3灵活布局与美观：多样性设计：单臂、双臂、仿古、景观灯杆等类型丰富，可融入不同环境（如商业街欧式灯杆、公园庭院灯）。

2.4低视觉侵入：低高度减少光污染，光线更贴近行人尺度，营造温馨氛围。

2.5维护便捷：低高度维修无需特种设备，普通升降车或脚手架即可完成，人工成本低。

LED光源寿命达6万小时，维护频率低。
2.6快速部署与节能

标准化生产支持批量安装，适合道路扩建或社区改造项目。

LED技术普及后，能耗较传统光源降低60–70%，符合绿色照明趋势。

三、适用场景

高杆灯普通灯杆最佳场景大型广场、交通枢纽、体育场、工业区城市道路、住宅区、公园步道照明需求大面积高强度照明（≥1000㎡）局部中低强度照明（≤500㎡）初始成本高（含升降系统、强化基础）低（标准化安装）长期维护升降系统降低高空作业成本低高度维修便捷扩展性支持智能控制、多光源定制设计多样，美观适配街区景观

选高杆灯：需覆盖超大面积（如万人体育场）、追求低维护成本与长寿命的场景。

四、高灯杆、普通灯杆的选择
选普通灯杆：预算有限、强调环境融合与快速部署的中小型项目（如社区道路、商业街区）。随着LED和智能控制技术进步，两者均在节能与智能化方向持续升级，实际选择需综合空间规模、预算及功能需求而定。

五．产品形状、材质与定制规格
5.1产品形状：圆形/方形/T形/Y形等多种样式

5.2产品材质：Q235碳钢/铝质/201不锈钢/304不锈钢
5.3可定制规格：

常规高度或长度：1米/2米/3米/4米/5米/6米/6.5米/7米/8米/9米/10米/12米/15米/18米/20米/30米等

常规口径：30mm/40mm/50mm/60mm/80mm/120mm/140mm/160mm/180mm/200mm/220mm/240mm/260mm/280mm/300mm/320mm/350mm/400mm/450mm/500mm/800mm/1000mm等

常规厚度：1.0mm/1.2mm/1.5mm/2.5mm/3.0mm/4.0mm/5.0mm/6.0mm/8.0mm/10mm/12mm/14mm/16mm等

根据需方要求产品价格：60元-60万元/套（含热镀锌喷塑，承重标准）。

Rod products

Our products include surveillance poles, octagonal poles, sign poles, gantry frames, height limit poles, smart poles, solar lamp poles, high lamp poles, scenic area poles, river poles, mountain top poles, etc. We support processing and customization, and they are widely used in urban management, transportation, energy, landscape, special environments and many other fields.

Product features and advantages

I. High lamp Posts and Ordinary lamp Posts:

High-pole lamps and ordinary lamp poles (usually referring to medium and low-pole street lamps with a height of 6 to 15 meters) have their own advantages in terms of lighting effect, applicable scenarios and maintenance costs due to differences in structure, height and function. The following is a comparison of the core advantages of the two:

I. Core Advantages of High-pole Lamps (Height usually ≥15 meters, up to 40 meters)

1.1 Ultra-wide range lighting

Wide coverage area: The illumination radius of a single lamp can reach 60 meters, and the lamp panel can integrate multiple sets of high-power light sources (such as 8 to 36 LED or high-pressure sodium lamps), suitable for areas of over 10,000 square meters such as airports ✈️, ports ⚓️, and stadiums.

Uniform and no blind spots: By optimizing the light distribution through lenses and reflectors, shadows and glare are reduced to achieve a lighting effect similar to that of daytime.

1.2 Efficient Maintenance and security

Intelligent lifting system: Equipped with an internal electric lifting device (driven by 380V power), the lamp panel can be lowered to the ground for maintenance, eliminating the need for cranes or high-altitude operations, reducing risks and costs.

1.3 Resistance to extreme environments

The lamp post is made by hot-dip galvanizing and powder coating process (galvanized layer ≥86μm), with wind resistance up to level 11 (36m/s), earthquake resistance up to level 8, and a service life of over 30 years.

1.4 Strong scene adaptability

Supports custom light panel structures (circular/polygonal) and light source combinations, flexibly matching different scenarios such as squares and overpasses.

The high installation position (above 20 meters) avoids blocking traffic and reduces pole collision accidents.

1.5 Energy Conservation and Intelligence

The energy consumption of LED light sources is 50% lower than that of traditional lamps. Combined with time-of-use dimming, it can save over 60% of electricity bills annually.

It can integrate an intelligent control module to achieve remote monitoring and energy efficiency management.

Ii. Core Advantages of Ordinary Lamp Posts (Height usually ≤12 meters)

2. Economy and popularity

2.1 Low cost: The initial investment is only 1/5 to 1/10 of that of high-pole lamps. Installation is simple and no complex infrastructure is required.

2.2 Wide applicability: It covers small and medium-sized scenarios such as urban roads, residential areas, and parks, meeting basic lighting needs.

2.3 Flexible Layout and Aesthetics: Diverse designs: Rich types such as single-arm, double-arm, antique, and landscape lamp posts, which can be integrated into different environments (such as European-style lamp posts in commercial streets, park and courtyard lamps).

2.4 Low visual intrusion: The low height reduces light pollution, and the light is closer to the scale of pedestrians, creating a warm atmosphere.

2.5 Easy maintenance: Low-height maintenance does not require special equipment. Ordinary lift trucks or scaffolding can be used to complete the task, with low labor costs.

The LED light source has a lifespan of up to 60,000 hours and requires low maintenance frequency.

2.6 Rapid Deployment and Energy Conservation

Standardized production supports batch installation and is suitable for road expansion or community renovation projects.

After the popularization of LED technology, energy consumption is reduced by 60 to 70% compared with traditional light sources, which is in line with the trend of green lighting.

Iii. Applicable Scenarios

The best scenarios for high-pole lamps and ordinary lamp poles are large squares, transportation hubs, stadiums, industrial zones, urban roads, residential areas, and park walkways. They require large-scale high-intensity lighting (≥1000 square meters) and local medium and low-intensity lighting (≤500 square meters). The initial cost is high (including the lifting system and reinforced foundation), low (standardized installation), and long-term maintenance. The lifting system reduces the cost of high-altitude operations and has a low height The maintenance is convenient and expandable, supporting intelligent control and multi-light source customized design. It is aesthetically pleasing and compatible with the street landscape

Choose high-pole lamps: For scenarios that need to cover an extremely large area (such as a stadium for ten thousand people), and those that pursue low maintenance costs and long lifespan.

Iv. Selection of High Lamp Posts and Ordinary Lamp Posts

Choose ordinary lamp posts: For small and medium-sized projects with limited budgets that emphasize environmental integration and rapid deployment (such as community roads and commercial streets). With the advancement of LED and intelligent control technologies, both are continuously upgrading in the direction of energy conservation and intelligence. The actual choice should be determined by comprehensively considering the scale of the space, budget and functional requirements.

Five Product shape, material and custom specifications

5.1 Product shape: Various styles such as round, square, T-shaped, Y-shaped, etc

5.2 Product Material: Q235 carbon steel/Aluminum /201 stainless steel /304 stainless steel

5.3 Customizable Specifications

Standard heights or lengths: 1 meter /2 meters /3 meters /4 meters /5 meters /6 meters /6.5 meters /7 meters /8 meters /9 meters /10 meters /12 meters /15 meters /18 meters /20 meters /30 meters, etc

Conventional caliber 30mm/40mm/50mm/60mm/80mm/120mm/140mm/160mm/180mm/200mm/220mm/240mm/260mm/280mm/300mm/320mm/350mm/400mm/450mm/500mm/800mm /1000mm, etc

Conventional thickness: 1.0 mm / 1.2 mm / 1.5 mm / 2.5 mm / 3.0 mm / 4.0 mm / 5.0 mm / 6.0 mm / 8.0 mm / 10 mm / 12 mm, 14 mm / 16 mm, etc

According to the requirements of the buyer, the product price is 60 to 600,000 yuan per set (including hot-dip galvanizing and plastic spraying, with load-bearing standards).
