标志杆+龙门架+限高杆

杆件类产品：
包括监控杆、八棱杆、标志杆、龙门架、限高杆、智慧杆、太阳能灯杆，高灯杆、景区杆、河道杆、山顶杆等支持加工定制，广泛应用于城市管理、交通、能源、景观、特殊环境等多个领域。


产品特点与优势：
以下是龙门架、限高架和标志杆的核心优势与特点总结，结合其应用场景和技术特性进行分类说明：

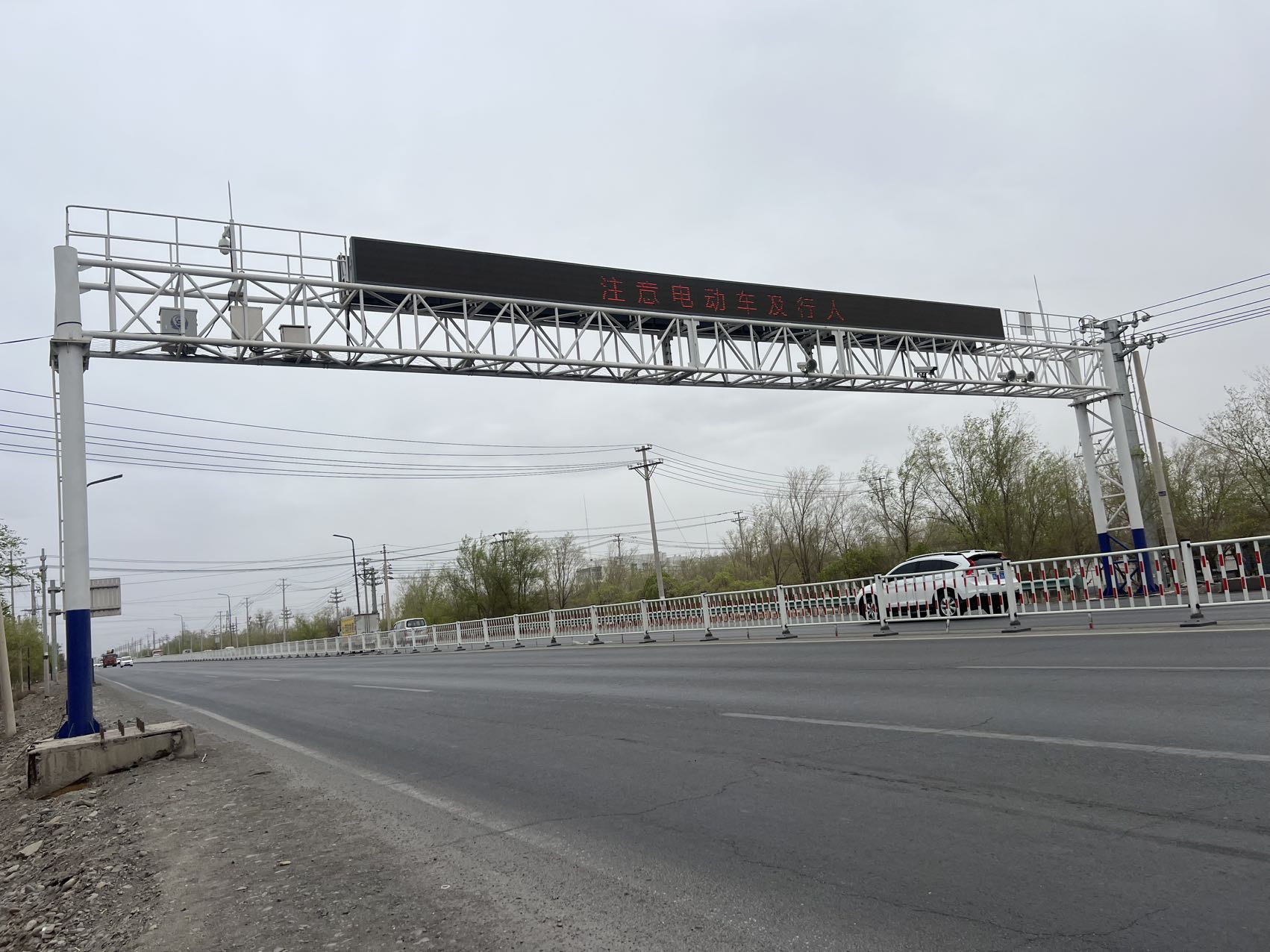

一、鏖鑫龙门架优势与特点

1.1多功能性与结构稳固

交通管理：用于悬挂交通信号灯、测速设备、监控摄像头，提升道路安全和管理效率；支持多设备集成，合理利用立体空间。

1.2工业起重：移动式龙门架可承载100–5000kg重量，带刹车承重轮便于转移场地；自升装置实现快速拆装，适应车间设备搬运、汽修吊装等场景。

1.3抗风耐用：钢材或铝合金材质经热镀锌处理，耐腐蚀性强，可抵御10级风力及恶劣天气。

1.4灵活调节与安全性

高度、宽度可分级调节，适应不同作业需求（如桥梁施工或大型活动临时管制）。

配备断绳保护装置和自锁系统，防止吊装意外；操作需遵循安全规范，如负荷试吊和定期维护。

1.5应用场景：交通枢纽、高速公路、工业车间、施工现场等。

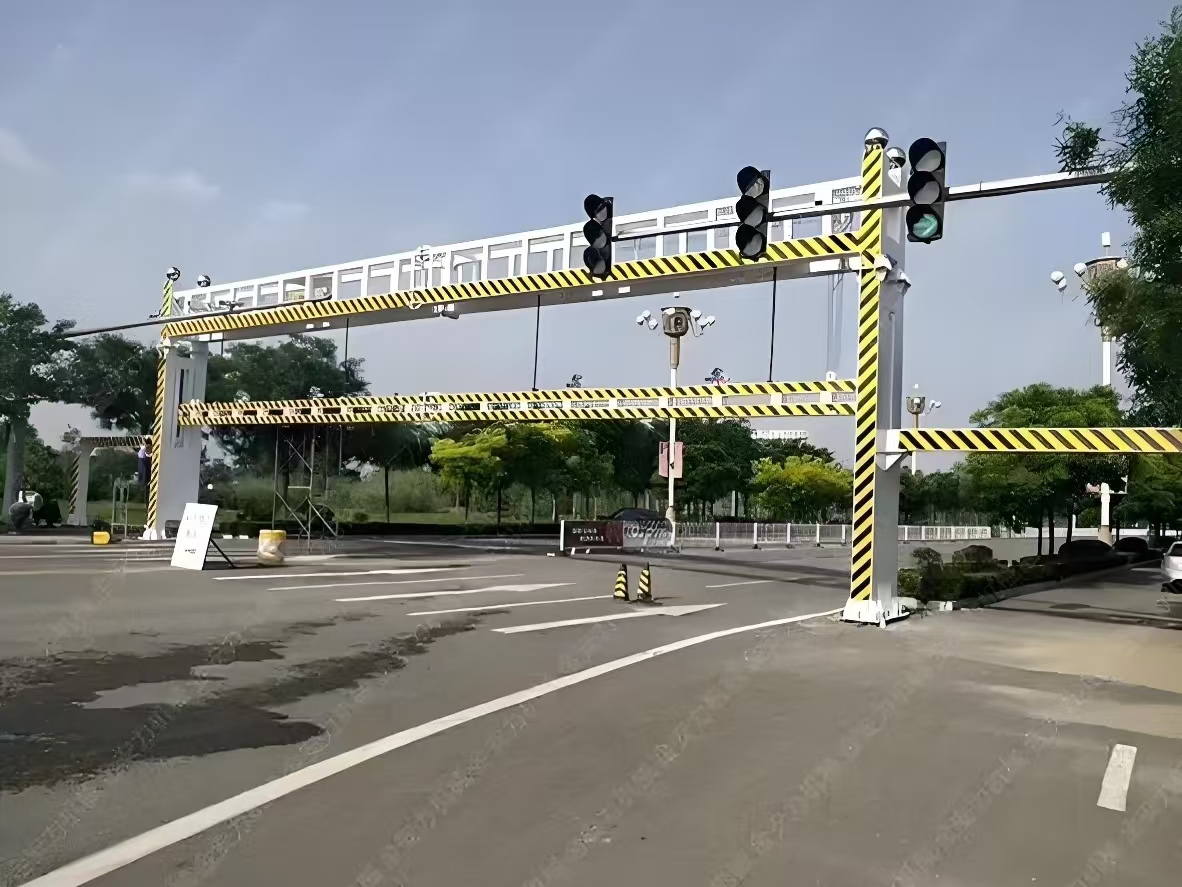

二、鏖鑫限高架优势与特点

2.安全防护与高度管理

2.1防碰撞设计：限制超高车辆通行，保护桥梁、隧道、涵洞等基础设施，避免撞击事故（如铁路桥限高架标准高度4.0–4.5米）。

2.2智能警示系统：部分型号配备声光报警、LED显示屏及传感器，实时监测车辆高度并远程报警，提升响应效率。

2.3耐用性与适应性

材料工艺：高强度钢材+热镀锌/喷塑处理，耐候性达30年以上；反光标识增强夜间可视性。

2.4灵活调节：开门式、对开式限高架支持高度调整，适应不同路段需求；可拆卸设计便于临时管控。

2.5类型优点缺点
限高防护架耐用性强、维护成本低占地大、安装复杂限高杆占地小、可调节高度易损坏、承重有限固定式护栏稳定性强无法调整高度

2.6应用场景

公路入口、铁路桥、涵洞、收费站及城市敏感区域。

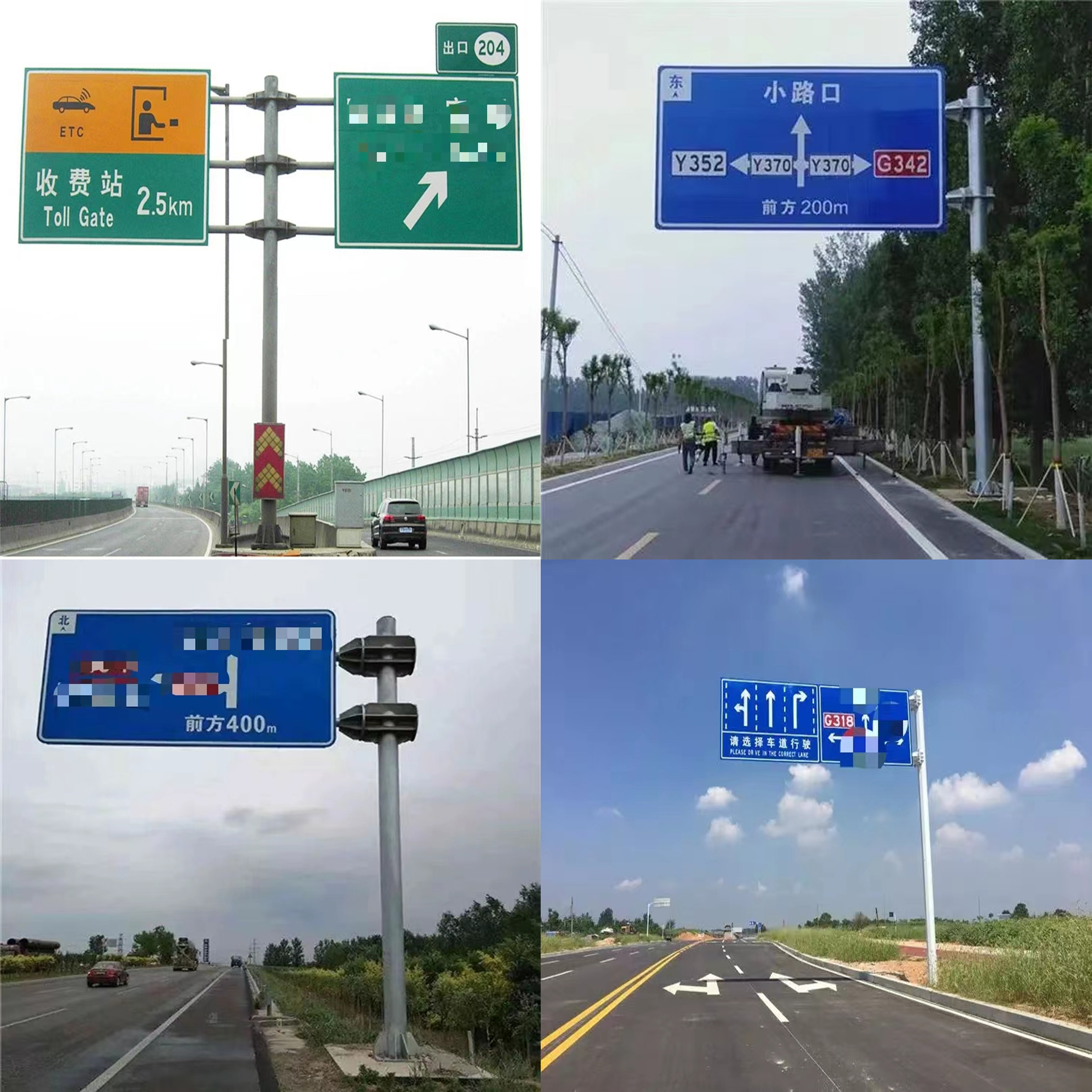

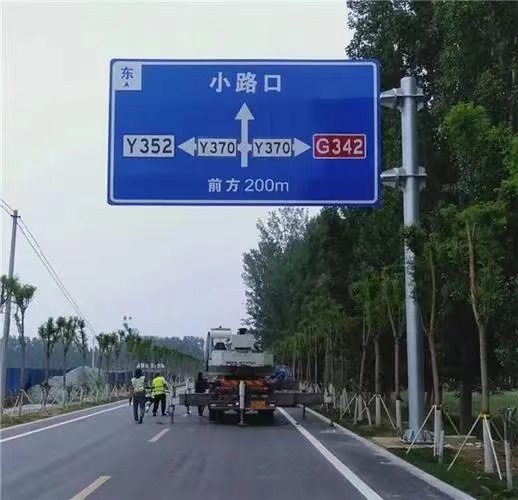

三、鏖鑫标志杆优势与特点

3.1高可视性与信息传递

3.11反光与智能设计：采用反光膜或LED照明，确保夜间及低能见度环境下清晰显示；智能标志杆可集成传感器，实时更新路况信息。

3.12标准化布局：符合国标设计，标志高度和视距优化（如高速标志杆适应高速行车视野），提升驾驶员反应速度。

3.2结构多样与耐用性

3.21类型选择：

单悬臂式：节省空间，安装灵活，适合城市道路。

双立柱式：稳定性强，抗风载能力高，适用于高速公路及多标志悬挂。

材质工艺：热镀锌钢材或玻璃钢材质（如玻璃钢标志桩），耐腐蚀、抗冲击，寿命达30年；防偷盗设计（玻璃钢无回收价值）。

3.3应用场景

交通指示（限速、方向）、设施标识（停车场、加油站）、景区导览及地下管线标记。

3.4总结简述

3.41龙门架：以多功能集成和重型承重为核心，适用于动态交通管理与工业场景，强调安全性与可移动性。

3.42限高架：专注高度管控与基础设施防护，智能型号提升预警能力，但需权衡安装复杂度与灵活性。

3.43标志杆：侧重信息可视与环境适配，通过材质和结构优化实现长期低维护使用。

3.44三类设施均依赖热镀锌/喷塑工艺提升耐候性，并遵循国标确保安全。实际选择需综合场景需求（如车流量、空间限制）及智能化程度。

四、产品形状、材质与定制规格
4.1产品形状：圆形/方形/L形/T形/F形/Y形等多种样式

4.2产品材质：Q235碳钢/铝质/201不锈钢/304不锈钢
4.3可定制规格：

常规高度或长度：1米/2米/3米/4米/5米/6米/6.5米/7米/8米/9米/10米/12米/15米/18米/20米/30米等

常规口径：30mm/40mm/50mm/60mm/80mm/120mm/140mm/160mm/180mm/200mm/220mm/240mm/260mm/280mm/300mm/320mm/350mm/400mm/450mm/500mm/800mm/1000mm等

常规厚度：1.0mm/1.2mm/1.5mm/2.5mm/3.0mm/4.0mm/5.0mm/6.0mm/8.0mm/10mm/12mm/14mm/16mm等

根据需方要求产品价格：60元-60万元/套（含热镀锌喷塑，承重标准）。





Rod products

Our products include surveillance poles, octagonal poles, sign poles, gantry frames, height limit poles, smart poles, solar lamp poles, high lamp poles, scenic area poles, river poles, mountain top poles, etc. We support processing and customization, and they are widely used in urban management, transportation, energy, landscape, special environments and many other fields.



Product features and advantages

The following is a summary of the core advantages and features of gantry cranes, height limit frames and sign poles, classified and explained in combination with their application scenarios and technical characteristics:

I. Advantages and Features of aoxin Gantry frame

1.1 Versatility and structural stability

Traffic management: Used for hanging traffic signals, speed measurement devices, and surveillance cameras to enhance road safety and management efficiency. Support multi-device integration and make rational use of three-dimensional space.

1.2 Industrial lifting: The mobile gantry crane can bear a weight of 100 to 5,000 kilograms. It is equipped with brake load-bearing wheels for easy site transfer. The self-elevating device enables rapid disassembly and assembly, making it suitable for scenarios such as equipment transportation in workshops and auto repair hoisting.

1.3 Wind-resistant and durable: Made of steel or aluminum alloy and treated with hot-dip galvanizing, it has strong corrosion resistance and can withstand winds of up to level 10 and severe weather conditions.

1.4 Flexible adjustment and safety

The height and width can be adjusted in grades to meet different operation requirements (such as bridge construction or temporary control during large-scale events).

Equipped with a rope-breaking protection device and a self-locking system to prevent hoisting accidents; Operations must comply with safety regulations, such as load test lifting and regular maintenance.

1.5 Application Scenarios: Transportation hubs, expressways, industrial workshops, construction sites, etc.

Ii. Advantages and Features of new height limit frame

2. Safety protection and high-level management

2.1 Anti-collision design: Restrict the passage of over-height vehicles, protect infrastructure such as Bridges, tunnels, and culverts, and prevent collision accidents (for example, the standard height of the height limit frame for railway Bridges is 4.0-4.5 meters).

2.2 Intelligent Warning System: Some models are equipped with sound and light alarms, LED displays and sensors to monitor the vehicle height in real time and issue remote alarms, improving response efficiency.

2.3 Durability and Adaptability

Material and process: High-strength steel + hot-dip galvanizing/powder coating treatment, weather resistance over 30 years; Reflective signs enhance visibility at night.

2.4 Flexible Adjustment: The opening type and the split type height limit frame support height adjustment to meet the needs of different road sections. The detachable design facilitates temporary control.

2.5 Type Advantages and disadvantages

The height-limiting protective frame is durable, has low maintenance costs, but occupies a large area and is complex to install. The height-limiting rod occupies a small area and can be adjusted in height but is prone to damage and has limited load-bearing capacity. The fixed guardrail has strong stability but cannot be adjusted in height

2.6 Application Scenarios

Highway entrances, railway Bridges, culverts, toll stations and sensitive urban areas.

Iii. Advantages and Features of aoxin sign pole

3.1 High visibility and Information Transmission

3.11 Reflective and Intelligent Design: Utilizing reflective film or LED lighting to ensure clear display at night and in low visibility environments; Intelligent sign poles can be integrated with sensors to update road conditions in real time.

3.12 Standardized Layout: In line with national standards, the height and viewing distance of signs are optimized (such as high-speed sign poles adapting to the high-speed driving field of vision), enhancing the driver's reaction speed.

3.2 Structural diversity and durability

3.21 Type Selection:

Single cantilever type: Space-saving, flexible installation, suitable for urban roads.

Double-column type: It has strong stability and high wind load resistance, and is suitable for highway and multi-sign suspension.

Material and process: Hot-dip galvanized steel or fiberglass reinforced plastic (such as fiberglass reinforced plastic marker posts), corrosion-resistant, impact-resistant, with a service life of up to 30 years. Anti-theft design (fiberglass reinforced plastic has no recycling value).

3.3 Application Scenarios

Traffic signs (speed limit, direction), facility signs (parking lots, gas stations), scenic area guidance and underground pipeline markings.

3.4 Summary Brief

3.41 Gantry Crane: Centered on multi-functional integration and heavy load-bearing capacity, it is suitable for dynamic traffic management and industrial scenarios, emphasizing safety and mobility.

3.42 Height Limit Frame: Focusing on height control and infrastructure protection, the intelligent model enhances the early warning capability, but the installation complexity and flexibility need to be balanced.

3.43 Marker Pole: Focusing on information visibility and environmental adaptation, it achieves long-term low-maintenance use through material and structural optimization.

3.44 All three types of facilities rely on hot-dip galvanizing/powder coating processes to enhance weather resistance and comply with national standards to ensure safety. The actual selection should take into account the scene requirements (such as traffic volume, space limitations) and the degree of intelligence.

Iv. Product Shape, Material and Custom Specifications

4.1 Product shapes: Various styles such as round, square, L-shaped, T-shaped, F-shaped, Y-shaped, etc

4.2 Product Material: Q235 carbon steel/Aluminum /201 stainless steel /304 stainless steel

4.3 Customizable Specifications

Standard heights or lengths: 1 meter /2 meters /3 meters /4 meters /5 meters /6 meters /6.5 meters /7 meters /8 meters /9 meters /10 meters /12 meters /15 meters /18 meters /20 meters /30 meters, etc

Conventional caliber 30mm/40mm/50mm/60mm/80mm/120mm/140mm/160mm/180mm/200mm/220mm/240mm/260mm/280mm/300mm/320mm/350mm/400mm/450mm/500mm/800mm /1000mm, etc

Conventional thickness: 1.0 mm / 1.2 mm / 1.5 mm / 2.5 mm / 3.0 mm / 4.0 mm / 5.0 mm / 6.0 mm / 8.0 mm / 10 mm / 12 mm, 14 mm / 16 mm, etc

According to the requirements of the buyer, the product price is 60 to 600,000 yuan per set (including hot-dip galvanizing and plastic spraying, with load-bearing standards).
